Comparing Bimetal Thermometers, Thermocouples, and RTDs



Understanding Bimetal Thermometers, Thermocouples, RTD PT-100

Introduction

Temperature measurement is essential across industries, ensuring safe, efficient, and quality-controlled operations. The three main types of temperature sensors—bimetallic thermometers, thermocouples, and RTD PT-100 sensors—each offer unique features suited to different applications. Understanding these instruments is key to choosing the right one for your specific needs.

Bimetallic Thermometers

Principle of Operation:
Bimetallic Thermometer operate on the principle of thermal expansion. They consist of two different metals bonded together, each with distinct expansion rates. When temperature changes, the metals expand or contract at different rates, causing the bimetal strip to bend. This bending movement drives a needle on a dial, providing a temperature reading.

Applications:
Bimetallic thermometers are commonly used in HVAC systems, boilers, and industrial equipment. They are ideal for applications where a visual, on-site reading is sufficient. Their robust design makes them suitable for environments where electronic sensors may fail.

Advantages:

• Simplicity: Easy to use with no external power required.
• Durability: Resistant to mechanical wear and environmental factors.
• Cost-Effective: Economical option for basic temperature monitoring.

Limitations:
Bimetallic thermometers have limited accuracy compared to other sensors and are not suitable for precise measurements or remote monitoring. Their response time can also be slower in rapidly changing temperature conditions.

Thermocouples

Principle of Operation:
Thermocouples work based on the Seebeck effect, where two different metals joined at one end generate a voltage proportional to the temperature difference between the joined end (hot junction) and the open ends (cold junction). This voltage is then converted into temperature readings.

Applications:
Thermocouples are widely used in industrial processes, including furnaces, kilns, and engines. They can measure a broad temperature range, making them versatile for various high-temperature applications.

Advantages:

• Wide Temperature Range: Suitable for extreme temperatures, from -200°C to over 1800°C, depending on the type.
• Fast Response Time: Quickly reacts to temperature changes.
• Durability: Can withstand harsh environments, including corrosive and high-vibration conditions.

Limitations:
While thermocouples are versatile, they are less accurate than RTDs, with a typical accuracy of ±1-2°C. They are also sensitive to electrical interference, which can affect their readings.

RTD PT-100 Sensors

Principle of Operation:
Resistance Temperature Detectors (RTDs) operate on the principle that a metal's electrical resistance changes with temperature. The PT-100, a common type of RTD, uses platinum with a resistance of 100 ohms at 0°C. As the temperature rises, the resistance increases, and this change is used to calculate the temperature.

Applications:
RTD PT-100 sensors are used in laboratories, food processing, and industrial automation where high accuracy is critical. They are ideal for applications requiring precise, repeatable, and stable temperature measurements.

Advantages:

• High Accuracy: Typically accurate to within ±0.1°C.
• Stability and Repeatability: Provides consistent readings over time.
• Wide Range: Suitable for temperatures from -200°C to 600°C.

Limitations:
RTD sensors are more delicate and expensive compared to thermocouples and bimetallic thermometers. They require careful handling and are less suitable for extremely high-temperature environments.

Choosing the Right Sensor

Selecting the appropriate temperature sensor depends on the specific application and its requirements:

• Bimetallic Thermometers: Best for basic, on-site temperature readings where precision is not critical.
• Thermocouples: Ideal for high-temperature applications, harsh environments, and rapid temperature changes.
• RTD PT-100 Sensors: The go-to choice for applications requiring high accuracy and stability over a moderate temperature range.

Conclusion

Understanding the differences between bimetallic thermometers, thermocouples, and RTD PT-100 sensors is essential for making informed decisions in temperature measurement. Each sensor type has its strengths and weaknesses, making them suitable for specific situations. By choosing the right sensor, you can ensure accurate temperature monitoring, contributing to the efficiency and safety of your operations.

Panel Mounted Gauges and Test Plugs for Pressure Gauges



Understanding Panel Mounted Gauges and Test Plugs for Pressure Gauges

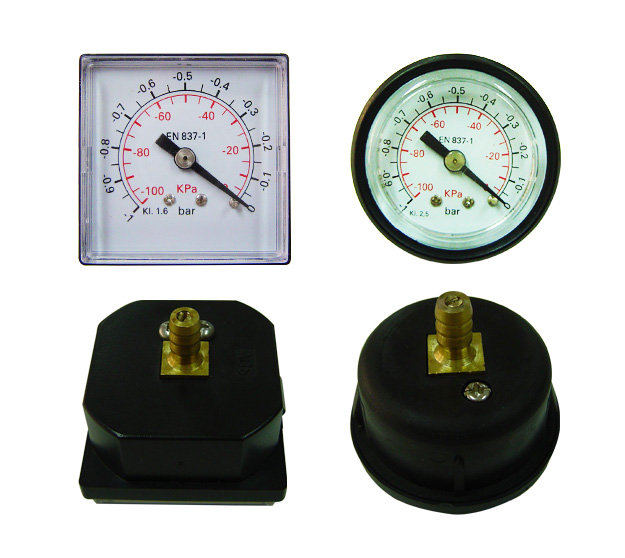

Panel mounted gauges and test plugs for pressure gauges are essential components in various industrial and mechanical systems. They are crucial for monitoring and maintaining the integrity of pressurized systems, ensuring safety, and optimizing operational efficiency. In this blog, we will explore what these components are, their applications, and the benefits they offer in different industries.

What is a Panel Mounted Gauge?

A panel mounted gauge is a type of  Panel mounted gauge that is designed to be installed on a control panel or a dashboard. Unlike conventional gauges that are directly attached to pipes or tanks, panel mounted gauges provide a centralized location for monitoring pressure. This is particularly useful in systems where operators need to keep an eye on multiple pressure points from a single location.

Applications of Panel Mounted Gauges:

1. Industrial Equipment Monitoring: In manufacturing and processing plants, panel mounted gauges are used to monitor the pressure of various fluids and gases. This helps in maintaining process consistency and safety.
2. Automotive and Marine Industries: These gauges are also used in vehicles and boats to monitor engine oil pressure, coolant levels, and other vital parameters from the dashboard.
3. HVAC Systems: Heating, ventilation, and air conditioning systems use panel mounted gauges to monitor and control the pressure of refrigerants and other gases.

Advantages of Panel Mounted Gauges:

1. Centralized Monitoring: Operators can easily monitor multiple pressure points without having to physically check each gauge, which is especially useful in large systems.
2. Improved Safety: By centralizing the monitoring, operators can quickly detect and respond to any pressure anomalies, reducing the risk of accidents.
3. Space Efficiency: These gauges are designed to fit compactly on control panels, saving space while providing essential information.

What is a Test Plug for Pressure Gauges?

A test plug, also known as a test point or pressure test plug, is a small device that allows for the safe and easy measurement of system pressure without the need for permanently installed gauges at every test point. It consists of a valve and a protective cap, and it can be used to temporarily connect a pressure gauge to the system for testing purposes.

Applications of Test Plugs for Pressure Gauges:

1. Periodic Maintenance and Testing: Test plugs are commonly used during routine maintenance to check the pressure in various parts of a system without interrupting its operation.
2. Troubleshooting: When a pressure anomaly is detected, a test plug can be used to measure pressure at specific points to diagnose the issue.
3. Calibration: Test plugs enable easy access for calibrating pressure gauges, ensuring that they provide accurate readings.

Advantages of Test Plugs for Pressure Gauges:

1. Non-Intrusive Testing: Test plugs allow pressure measurements to be taken without disrupting the system, making the process safer and more efficient.
2. Versatility: They can be installed in various parts of the system, providing flexibility for monitoring and testing.
3. Cost-Effective: By using test plugs, there is no need to install permanent gauges at every point, reducing equipment costs and complexity.

Conclusion

Both panel mounted gauges and test plugs for pressure gauges play a vital role in maintaining the functionality and safety of pressurized systems. Panel mounted gauges provide a centralized monitoring solution, allowing operators to keep track of critical pressure levels from a single location. Meanwhile, test plugs offer a convenient and non-intrusive way to measure and verify pressure at specific points, supporting effective maintenance and troubleshooting.

Incorporating these components into your system design can significantly enhance operational efficiency, safety, and reliability. Whether you are in manufacturing, automotive, HVAC, or any other industry that relies on precise pressure control, understanding and utilizing these tools effectively can make a substantial difference in your operations.

Essential Tools: V-Line Thermometers & Pressure Gauges



The Importance of V-Line Thermometers and Contractor Pressure Gauges in Industrial Systems

In industrial systems, precision and accuracy are essential for maintaining optimal performance and ensuring the safety of equipment and personnel. Two critical tools that help monitor and maintain these systems are the V-Line Thermometer and the Contractor Pressure Gauge. Whether you're a contractor, engineer, or maintenance technician, understanding the function and advantages of these devices can significantly impact system efficiency, prevent equipment damage, and reduce costly downtimes.

What is a V-Line Thermometer?

A V-Line Thermometer is a specialized temperature measuring device, widely used in various industrial settings. It is designed for durability and ease of reading, making it ideal for use in environments where quick and accurate temperature readings are critical.

The unique "V"-shaped design of the thermometer provides enhanced readability, allowing technicians to easily check temperatures from different angles. This is particularly beneficial in areas that are hard to access, such as mechanical rooms or behind large equipment. Accurate temperature readings from a V-Line thermometer ensure that industrial processes operate within the correct temperature range, which is crucial for maintaining efficiency, preventing overheating, and avoiding system malfunctions.

Durability is a key feature of V-Line thermometers. They are typically constructed using corrosion-resistant materials such as stainless steel, making them suitable for use in challenging conditions, including high humidity, extreme temperatures, and exposure to chemicals. This ensures the thermometer's longevity and reliability, even in the harshest industrial environments.

Applications of V-Line Thermometers

V-Line thermometers are versatile and can be used in a wide range of industrial applications, including:

• Boilers and Steam Systems: Monitoring water or steam temperatures is essential for the safe and efficient operation of boilers. V-Line thermometers provide the precise measurements needed to maintain optimal temperature levels.
• Pumping Systems: In industrial pumps, accurate temperature readings can prevent overheating of fluids and ensure that the pump operates at maximum efficiency.
• Cooling Systems: V-Line thermometers help in monitoring the temperature of fluids or gases in industrial cooling systems, ensuring proper heat exchange and system performance.
• Manufacturing Processes: Many manufacturing processes require strict temperature control to ensure product quality. V-Line thermometers offer the necessary accuracy and durability for monitoring these processes.

Understanding the Contractor Pressure Gauge

While temperature monitoring is crucial, pressure measurement is equally important in industrial systems. A Contractor Pressure Gauge is a reliable tool that provides real-time readings of pressure levels within various components of a system, such as pipes, tanks, and pumps. These gauges help contractors and technicians monitor pressure levels to ensure safe operation and prevent damage to equipment.

Contractor pressure gauges are built for rugged environments, featuring heavy-duty cases, durable lenses, and corrosion-resistant fittings. This ensures that the gauge can withstand the physical and environmental challenges typically encountered in industrial settings, such as dust, moisture, and extreme temperatures.

Why Pressure Gauges Matter

Pressure gauges play a vital role in industrial systems for several reasons:

• Preventing Equipment Damage: Operating under excessive pressure can lead to system failures, including burst pipes, damaged valves, and broken compressors. Regular monitoring with a contractor pressure gauge helps identify abnormal pressure levels before they cause significant damage.
• Ensuring Safety: High-pressure levels can pose serious safety risks, including leaks, explosions, or fires. Monitoring pressure with a reliable gauge helps technicians maintain safe conditions for both personnel and equipment.
• Optimizing System Efficiency: If pressure levels are not within the specified range, systems may operate inefficiently, leading to increased energy consumption and higher operational costs. Contractor pressure gauges enable real-time adjustments to optimize system performance.

Conclusion

Both the V-Line Thermometer and the Contractor Pressure Gauge are essential tools in industrial operations, providing the necessary data to ensure safety, efficiency, and reliability. Whether monitoring the temperature of fluids in cooling systems or checking the pressure levels in pipelines, these devices help contractors and technicians keep systems running smoothly. By incorporating these tools into routine maintenance practices, you can avoid costly equipment failures, enhance energy efficiency, and ensure that industrial systems operate at their best. The combination of precise temperature and pressure monitoring is crucial for keeping industrial systems safe, efficient, and cost-effective.

RTD PT-100 & Bimetal Thermowell: Precision & Durability in Temperature Measurement

 RTD PT-100 & Bimetal Thermowell: Precision & Durability in Temperature Measurement

In the world of industrial processes, accurate temperature measurement is crucial for ensuring product quality, safety, and efficiency. Among the various tools available for this purpose, RTD (Resistance Temperature Detector) RTD PT-100 sensors and bimetal thermowells stand out for their precision and durability. Understanding the roles of these components and how they work together can provide valuable insights into why they are so widely used in industries ranging from manufacturing to power generation.

What is an RTD PT-100?

An RTD PT-100 is a type of temperature sensor that uses the principle of resistance change with temperature. The "PT" in PT-100 refers to platinum, the metal used in the sensor, and "100" indicates that the sensor has a resistance of 100 ohms at 0°C. Platinum is chosen for its stable and predictable change in resistance with temperature, making it ideal for precise temperature measurements.

RTD PT-100 sensors are known for their accuracy and repeatability, often outperforming other types of temperature sensors such as thermocouples. They provide a linear relationship between temperature and resistance, which simplifies the process of converting the measured resistance into a temperature reading. This linearity, along with their wide temperature range and long-term stability, makes RTD PT-100 sensors a popular choice in industries where precise temperature control is essential.

The Role of the Bimetal Thermowell

While the RTD PT-100 is highly accurate, it is also sensitive and can be damaged by harsh environmental conditions. This is where the bimetal thermowell comes into play. A thermowell is a protective casing into which the RTD sensor is inserted. It shields the sensor from direct exposure to the process fluid, thereby preventing physical damage, corrosion, and contamination.

Bimetal thermowells are particularly valued for their ability to withstand extreme conditions. Made from two different metals fused together, they combine the strengths of each metal, offering superior durability and resistance to thermal stress. This construction allows them to perform reliably in environments with rapid temperature changes, high pressures, or corrosive substances.

The Importance of the Combination

The combination of an RTD PT-100 sensor with a bimetal thermowell creates a robust temperature measurement system that can handle the rigors of industrial environments while maintaining high accuracy. The RTD PT-100 provides precise temperature readings, while the bimetal thermowell ensures that the sensor is protected from potentially damaging conditions.

This setup is particularly useful in industries like chemical processing, oil and gas, and power generation, where temperature measurements are critical to maintaining safe and efficient operations. In these settings, any deviation from the desired temperature range can have significant consequences, making the reliability of the measurement system paramount.

Conclusion

The RTD PT-100 and bimetal thermowell combination represents the best of both worlds: precision and durability. While the RTD PT-100 offers exceptional accuracy, the bimetal thermowell provides the necessary protection to ensure the sensor’s longevity and consistent performance. Together, they form a reliable and effective solution for temperature measurement in demanding industrial environments, helping to ensure that processes run smoothly and safely.
